Place of Origin : Guangdong, China
Brand Name : SSTH/OEM
Model Number : SSTH-MN1240, MPPT
                Packaging Details :
                Package: Carton box
50pcs in one carton

Supply Ability : 30000 Piece/Pieces per Month
Price : CN¥292.62/pieces 1-49 pieces
Type : MPPT
Application : Charger Controller, Voltage Controller, Solar System Controller, mppt charge controller circuit
Work Time (h) : 24h
Max PV Power : 960w
Max PV Voltage : 24V
Rated Voltage : 12v 24v
Maximum Current : 40A
MPPT efficiency : 99%
Size : 187*97*61mm
Weight : 650g
Loop Buck : ≤100mV
Battery float voltage : 13.8V 12V system /27.6V 24V
Keyword : mppt solar charge controller circuit board
Certificate : CE
Warranty : 1 year
Port : Shenzhen

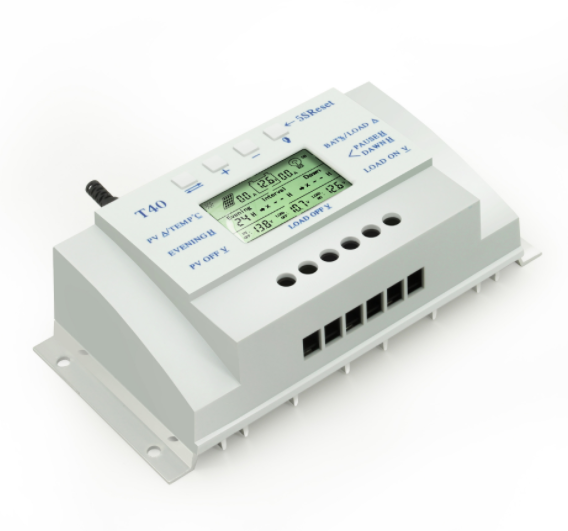

CE Certified 12V 24V Solar System MPPT Battery Charge Controller for Customized Battery Charging


Hot selling 12V 24V customized 50a mppt 40 amp solar charge controller 30a mppt battery charge controllers

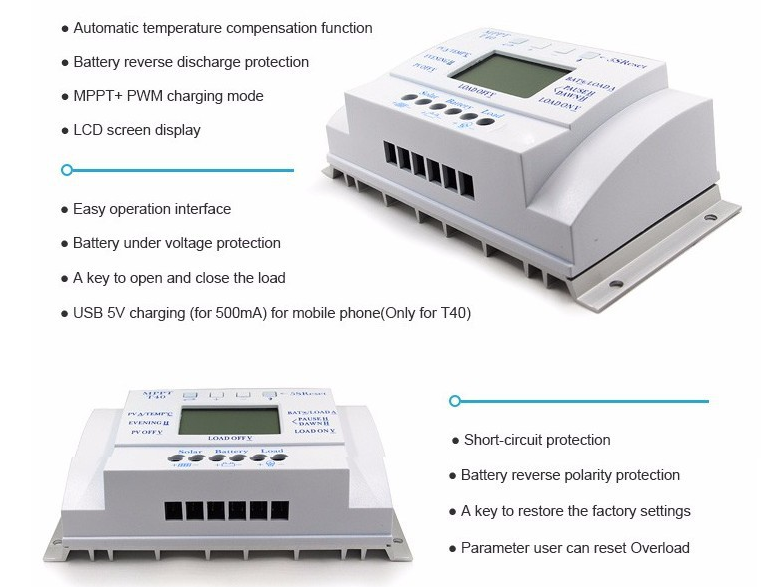

Product Features:
1.Not True MPPT,there is no large transformer coil inside,Compatible MPPT  charging mode.

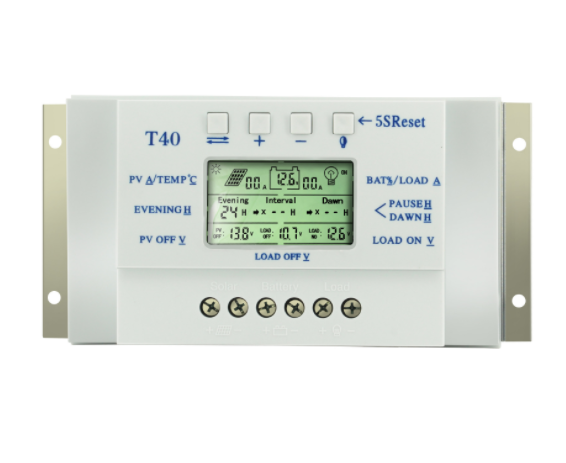

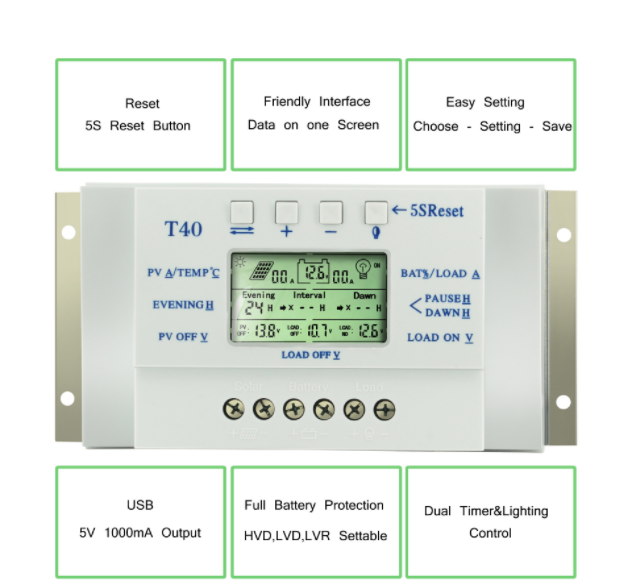

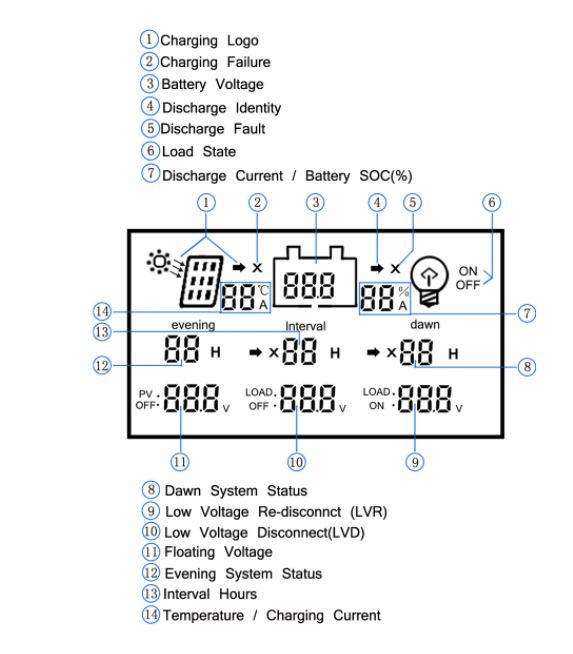

 2. Adopt customized LCD display screen, which makes the operation on the interface more convenient. All the controlling parameters can be reset flexibly to satisfy your different needs.

 3.The visual LCD graphic symbol ,and the Brief key operation makes it looks cool and easy to operate.User can a key to open and close the load,and a key to restore the factory settings.Also with 5V USB charging.

 4.Temperature compensation function, the controller can automatically adjust the charge parameters of battery by environment temperature to prolong the service life of battery. The temperature sensor is included, if you can not find it in the package, contact with the seller to get it .

 5.The system automatically recognizes the voltage, rated working voltage, 12V / 24V automatic switch.
| Parameters/Model | MN10 | MN20 | MN30 | MN40 | ||||
| Maximum Power Current | 12A | 20A | 30A | 40A | ||||
| Installation Lin mm2 | 4mm2 | 8mm2 | 10mm2 | 12mm2 | ||||
| Installation Line(AWG) | 10 (AWG) | 8(AWG) | 7(AWG) | 6(AWG) | ||||
| Weight | 350g | 450g | 600g | 650g | ||||
| Dimensions | 143×89×46 mm |  | 187*97*61 mm |  | ||||
| System load loss | ≤13mA |  |  |  | ||||
| Loop Buck | ≤100mV |  |  |  | ||||
| Battery float voltage | 13.8V 12V system /27.6V 24V system |  |  |  | ||||
| Battery under voltage) protection | 10.6V 12V system /21.2V 24V system |  |  |  | ||||
| Battery (under voltage) recovery voltage | 12.6V 12V system /25.2V 24V system |  |  |  | ||||
| Charge mode | MPPT MODE |  |  |  | ||||
| Operating Temperature | -10~60°C |  |  |  | ||||
| Storage Temperature | -30~70°C |  |  |  | ||||
| Humidity requirements | ≤90%, No condensation |  |  |  | ||||
| Temperature compensation | -4mV/Cell/°C |  |  |  | ||||
| Temperature Probe (built components) | TC 100K thermistats |  |  |  | ||||
| aximum open circuit voltage of the solar panel | 18V-24V 12V system 36V-48V 24V system) |  |  |  | ||||
| Solar panels maximum open circuit voltage (V) | ≤48V |  |  |  | ||||
| (Cases) 12V system standard configuration |  |  |  |  | ||||
| The peak voltage of the solar cell panel | 18V-25V | 18V-25V | 18V-25V | 18V-25V | ||||
| Peak power of solar cell panel | 50W-130W | 100W-260W | 200W-380W | ≤500W | ||||














Shenzhen Shengshi Tianhe technology Co., LTD. was founded in 2002 and factory has over 8000 square meters. At the end of 2017, the company have 500 employees, including technical research and development and management staff more than 65 peoples. SZSSTH are hi-tech enterprise which is engaged in R&D, production, sales and service of power inverter, solar inverter, solar panel, solar charge controller, solar power bank & power station, universal laptop adapter, car jump starter , switching power and so on. We obtained the CE ROHS FCC LVD TUV, UL, KC, SAA,SGS,UKCA, REACH, PAHS ,BSCI, NF GS and others certificates for our product. Our products are exported to many countries and regions such as Eurasian, North and South America, Middle East and Africa.

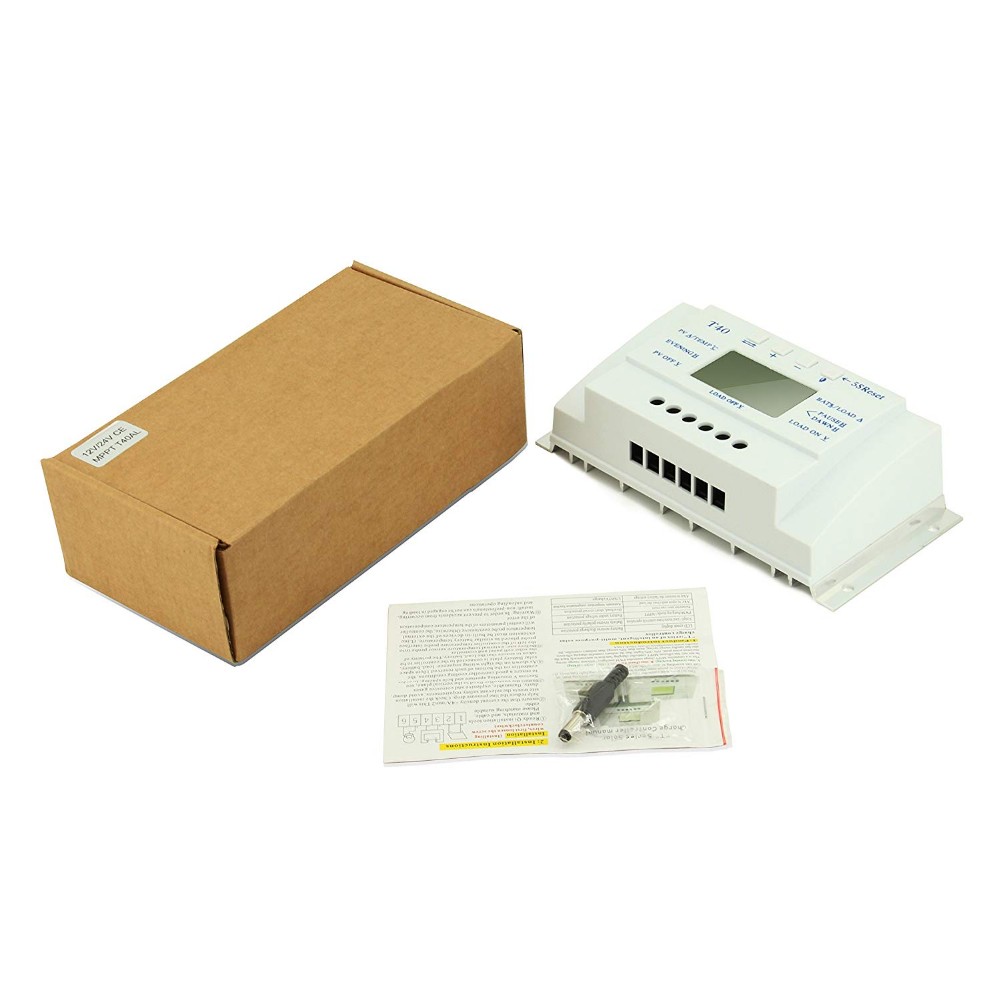

Package: gift box
1pc/Inner box;50pcs/CTN



Q1. What is your terms of packing?
 A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

 Q2. What is your terms of payment?
 A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
 before you pay the balance.

 Q3. What is your terms of delivery?
 A: EXW, FOB, CFR, CIF, DDU.

 Q4. How about your delivery time?
 A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

 Q5. Can you produce according to the samples?
 A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

 Q6. What is your sample policy?
 A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

 Q7. Do you test all your goods before delivery?
 A: Yes, we have 100% test before delivery
|   |
